大曹填料简介

Daisogel introduction

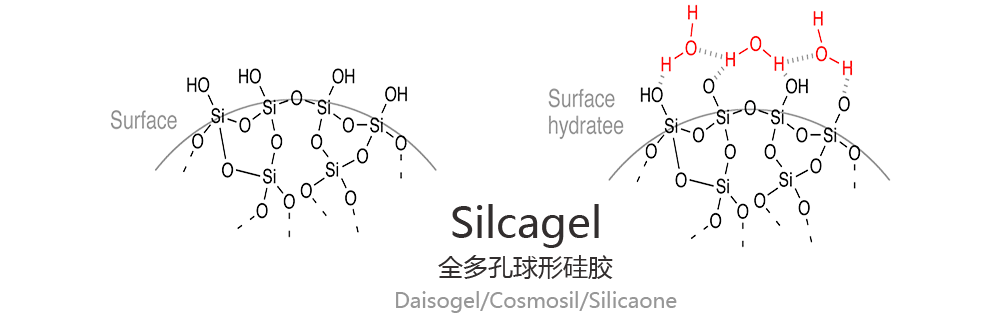

Crucial separation media in phamaceutical industry for analysis and production Spherical silica gel for chromatogra-phy(the most sophisticated kind of silica)is a tool to separate different chemical compounds or molecules. The lead-ing Sol-Gel manufacturing method of OSAKA SODA under ISO 9001 control provides the highest quality bare silica gel. OSAKA SODA is able to supply wide range of differentparticle sizes (from 1.7 micron to 50 micron) with pore size choices from 60 to 2000 Angstrom. The industry first GNIP* compliant

silica surface modification facility tums the bare silica to bonded stationary phases varying from C18 to

(C1 modifications. Industrial scale production started more than 20 years ago, but insistent R&D activity keeps DAISOGELTM at the cutting edge, ahead of competition. The more than 300 different DAISOGELTM products are sold world-wide, our customers are the major intemational pharmaceuti-cal companies.

·全多孔球形填料

·粒径1.7um-50um

·丰富的键合相C1-C30/APS/CN/DIOL

·丰富的修饰等级P/PK/RPS/BP/HP/BIO/B/NEC

·不同的孔径60/90/100/120/200/300/1000

·按客户需求定制

·完善的文件支持DMF/ISO

·麦可旺志提供充分的技术支持

规格

粒径 孔径 封尾 键合相 修饰程度

Particular Size/Pore Size/End capping/Modification
粒径∶1.7um-50um

孔径∶60901001202003001000A
键合相∶C1C4C8C18C22C30 Diol CN NH2
亲水修饰∶全亲水疏水
修饰程度∶含碳量8%-22%
